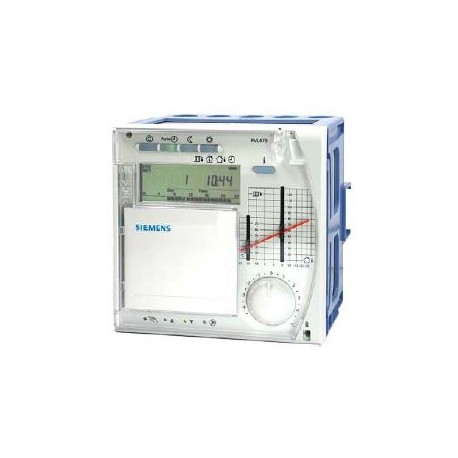

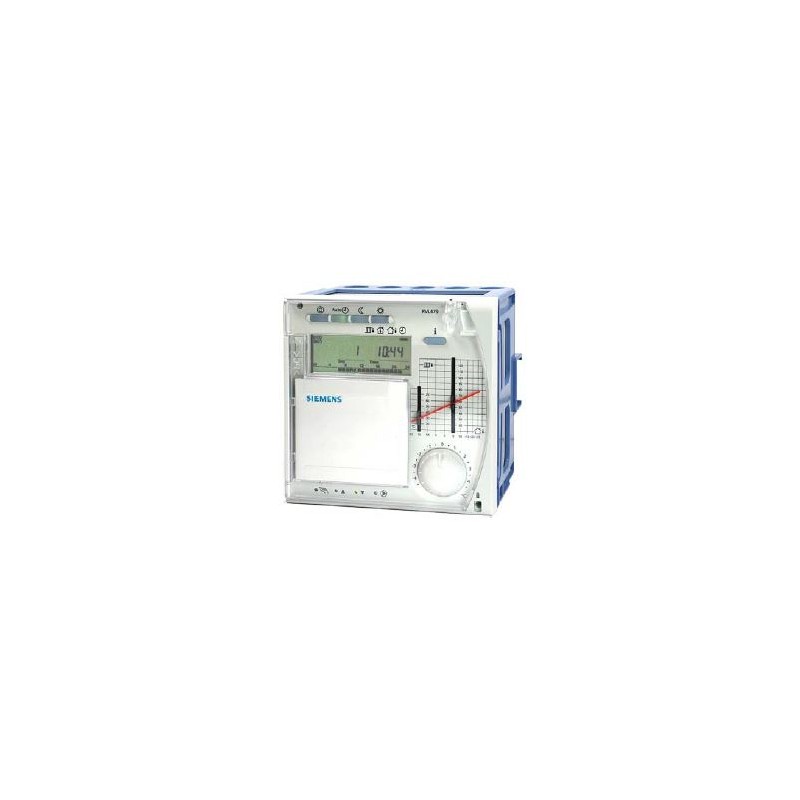

RVL479
New
Nava amiral a gamei regulatoarelor electronice de incalzire o gama completa de regulatoare electronice de incalzire multifunctionale pentru fiecare tip de instalatie de incalzire si pentru toate tipurile de cladiri. Aplicatiile pre-programate (incalzirea spatiului, controlul cazanului, zone multiple de incalzire, functii de termoficare si control a.c.m.). Bara analogica originala, functii ECO, model camera, incalzire sporita, revenire rapida la pozitia zero, optiuni pentru soare si vant, releu multifunctional, contacte H, comunicare prin LPB cu alte regulatoare electronice de incalzire, precum si sisteme standard OCI6.. si ACS7
Rating:
Be the first to write a review!
More info
Application
Heating controller for use in all types of buildings that require specific control of a second heating zone at an attractive price.
Key functions
The RVL479 operates with a partner unit, for independent weather-compensated control of a second heating zone.
1 preprogrammed heating application: Space heating via control 3-position of a mixing valve.
Additional functions
Heating controller for use in all types of buildings that require specific control of a second heating zone at an attractive price.
Key functions
The RVL479 operates with a partner unit, for independent weather-compensated control of a second heating zone.
1 preprogrammed heating application: Space heating via control 3-position of a mixing valve.
Additional functions
- Dedicated control of the second heating zone makes it possible to use an independent user interface for diagnostics
- Separate 7-day program with 3 heating periods per day
- Separate holiday program
- Dedicated display of parameters for the second zone (operating state and fault status signals)
- Independent optimum start/stop for the second heating zone
- Minimum and maximum limitation of the flow temperature
- Minimum limitation of the return temperature
- Maximum limitation of the room temperature
- Communication with other devices via LPB data bus
- Transmission and common usage of data (outside temperature, heat demand, alarms, etc.)
- Frost protection and pump protection
