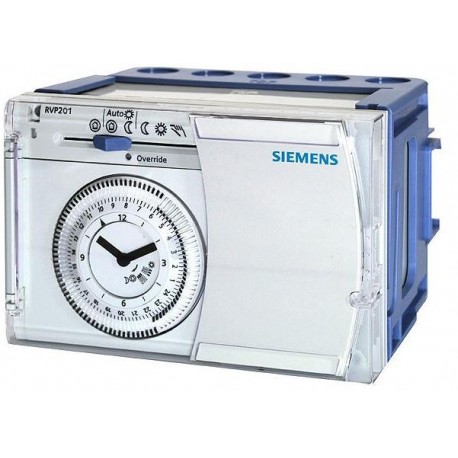

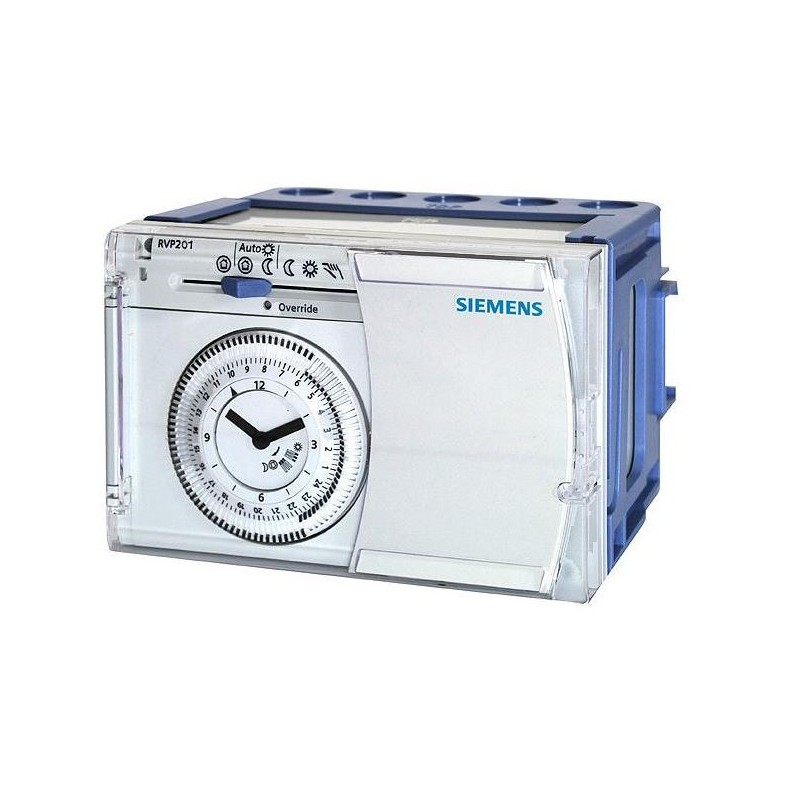

RVP201.1
Nou
Heating controller for use in residential or smaller non-residential buildings that have their own heat generating plant. Weather-compensated flow temperature control with or without room temperature influence or room temperature control. Control of three-position or two-position actuators or direct control of burner, control of circulating pump, control of d.h.w. heating. Analog operating elements for the end-user. Operating voltage AC 230 V.
Detalii
Key functions
Weather-compensated flow or boiler temperature control, with or without room influence or room temperature control. Control of 3- or 2-position actuators or direct control of a burner.
Additional settings
- Control of the heating pump
- Quick setback and boost heating
- Heating curve
- Room temperature influence
- Frost protection for the plant and the room
- Automatic ECO function for switching the heating system on and off depending on demand
- Maximum limitation of the flow or boiler temperature
- Pump overrun and pump kick
- Remote switching of operating mode via room unit or external switch
Operating modes
The following operating modes can be selected with the slider: Automatic/Protection, Automatic/Reduced, Setback, Normal operation and Protection.
