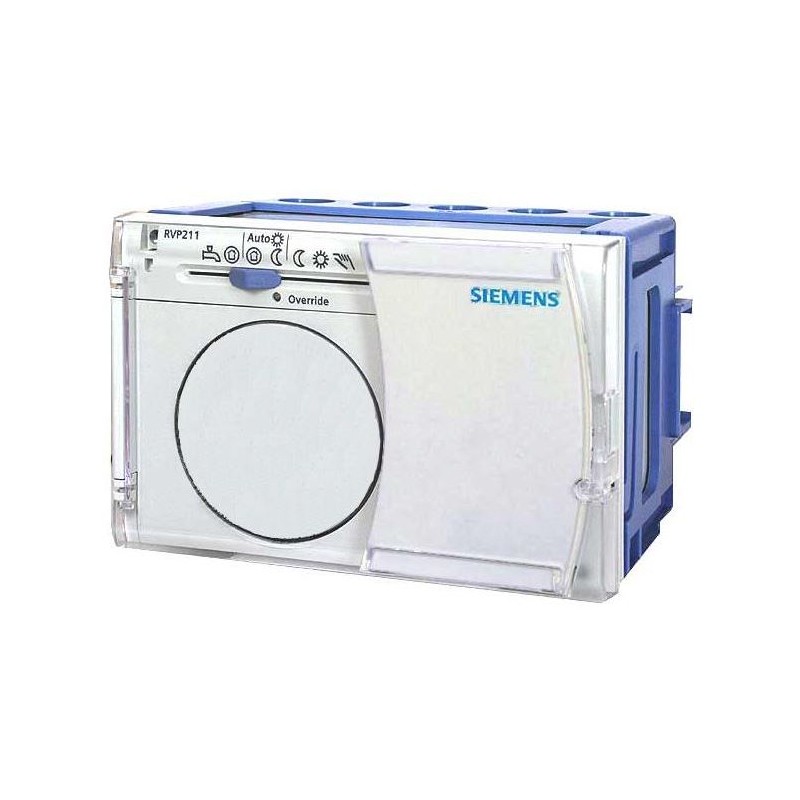

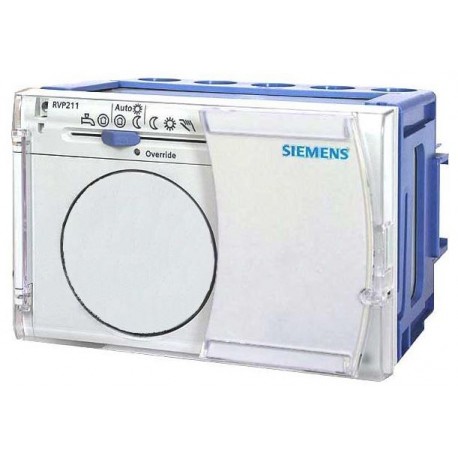

RVP211.0
Nou
Heating controller for use in residential or smaller non-residential buildings that have their own heat generating plant. Weather-compensated flow temperature control with or without room temperature influence or room temperature control. Control of three-position or two-position actuators or direct control of burner, control of circulating pump, control of d.h.w. heating. Analog operating elements for the end-user. Operating voltage AC 230 V.
Detalii
Key functions (same as RVP201)
Other settings (same as RVP201)
DHW heating functions
- Storage tank charging by control of a charging pump:
- Absolute priority: Heating circuit pump remains locked during DHW charging
- No priority (parallel): Heating circuit pump and DHW charging pump operate parallel
- Storage tank charging by control of a diverting valve
- Frost protection for DHW
- DHW temperature can be acquired via a temperature sensor or thermostat
Operating modes
The following operating modes can be selected with the slider: Automatic/Protection, Automatic/Reduced, Setback, Normal operation, Protection, or DHW heating only.
Attribute
|
Value |
|
Attribute |
Value |
|
Name |
RVP211.0 |
|
Operating voltage |
AC 230 V |
|
Frequency |
50 Hz |
|
Power consumption |
7 VA |
|
Analog input, signal |
LG-Ni1000 , NTC 575 |
|
Relay output, switching voltage |
AC 24…230 V |
|
Relay output, switching current |
2 A |
|
Degree of protection |
IP40 |
|
Dimensions (W x H x D) |
144 × 96 × 115 mm |
